3-Fold Full Extension Undermount Concealed Drawer Slide, Handle Type, Soft Close
ZG-DSU1-10 concealed undermount slide with full extension, hydraulic soft close and tool-free front handle release. Choose 2D or 3D adjustment; 250–500 mm lengths.
Technical specifications
| Model | ZG-DSU1-10 |
|---|---|
| Mounting / extension | Concealed undermount · 3-fold, 100% full extension |
| Function | Hydraulic soft close; tool-free front handle release |
| Length options | 250 / 300 / 350 / 400 / 450 / 500 mm (10″–20″) |
| Material / thickness options | Cold-rolled steel; 1.0 / 1.5 / 1.8 mm rail-sheet options |
| Rated load | 35 kg per pair; heavy-duty variant 40–45 kg per pair |
| Cycle life | ≥50,000 open-close cycles |
| Finish | Zinc plated / optional black powder coating |
| Drawer side panel | 16 or 18 mm; maximum 18 mm |
Length & drawer cutting reference
| Nominal size | Rail length (NL) | Recommended drawer depth |
|---|---|---|
| 10″ | 250 mm | 240 mm |
| 12″ | 300 mm | 290 mm |
| 14″ | 350 mm | 340 mm |
| 16″ | 400 mm | 390 mm |
| 18″ | 450 mm | 440 mm |
| 20″ | 500 mm | 490 mm |
Drawer depth = nominal rail length − 10 mm. Drawer bottom width = clear cabinet interior width − 49 mm. Drawer side panel must extend at least 10 mm below the bottom; provide a Ø6 mm hook hole in the back panel.
These cutting dimensions are reference values. Confirm the final drawing and sample before production.
2D vs 3D front handle adjustment
2D
Adjustment：Height 0 to +3 mm; lateral ±1.5 mm. No depth adjustment at the handle.
Best suited to：Volume projects with consistent cabinet machining. Adjust the cabinet rail screws for front alignment.
3D
Adjustment：Height 0 to +3 mm; lateral ±1.5 mm; front-to-back ±3 mm at the front handle.
Best suited to：Custom furniture and fine alignment of drawer-front gaps without loosening the rail.

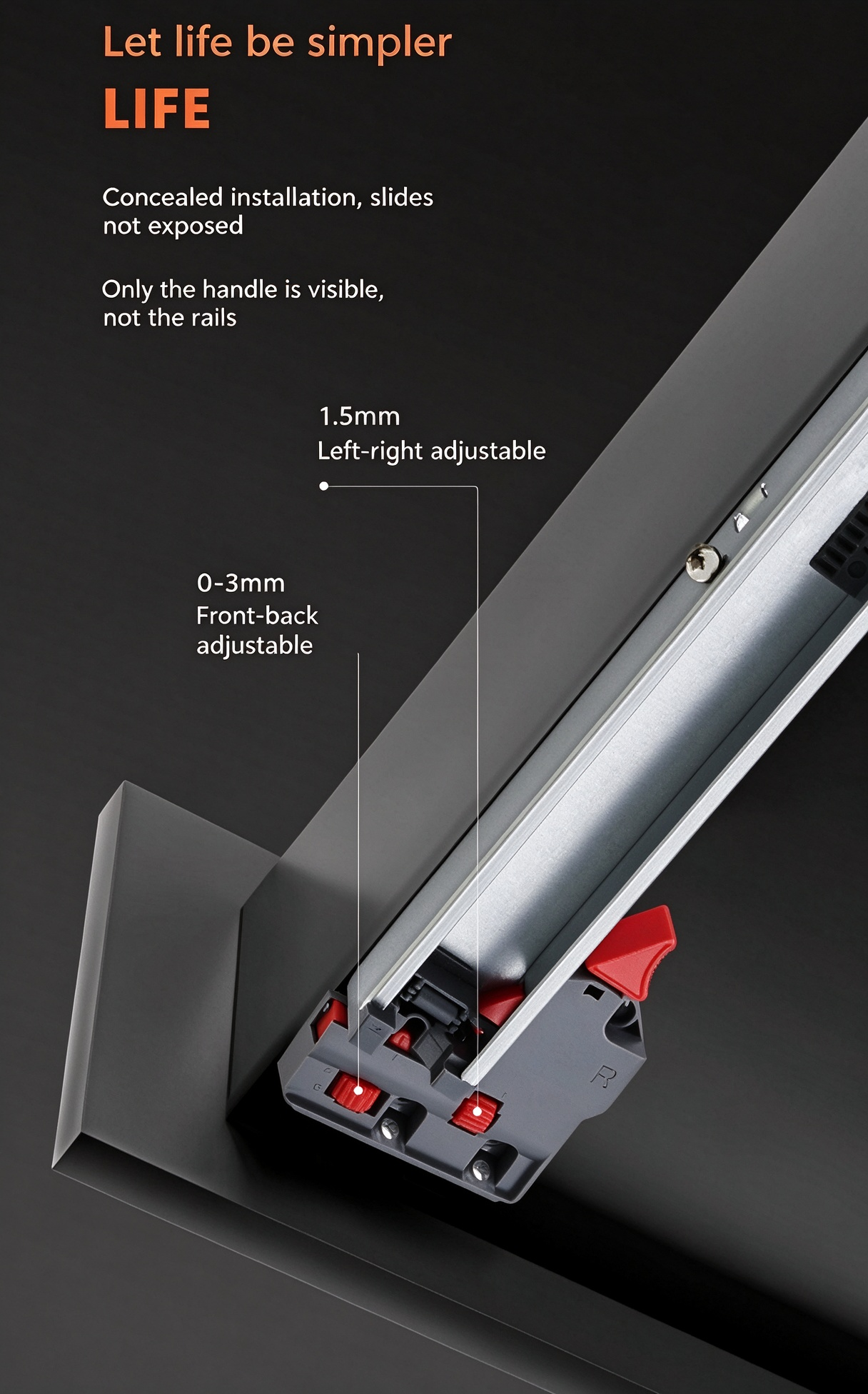

Front handle close-up

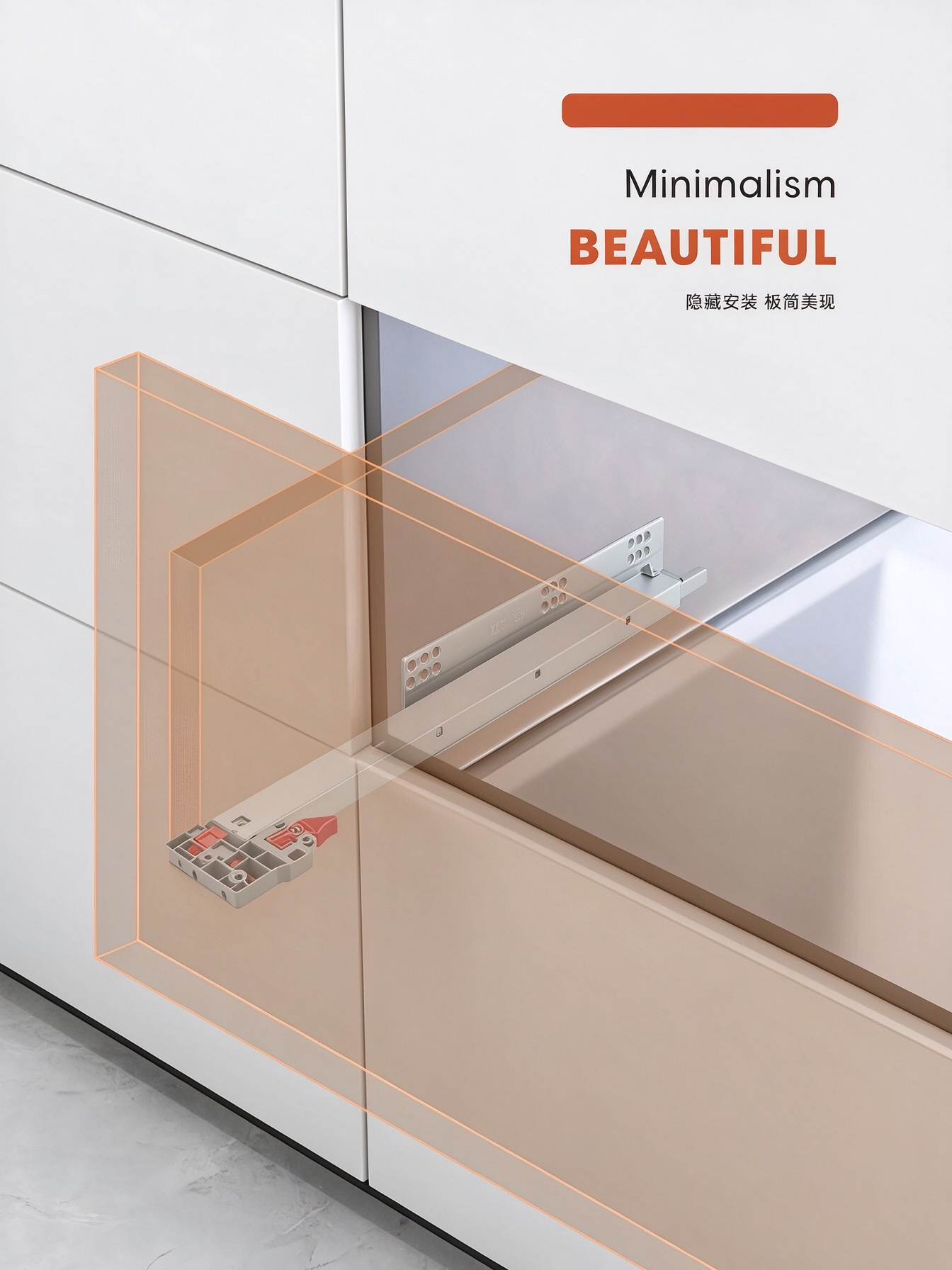

Concealed mounting

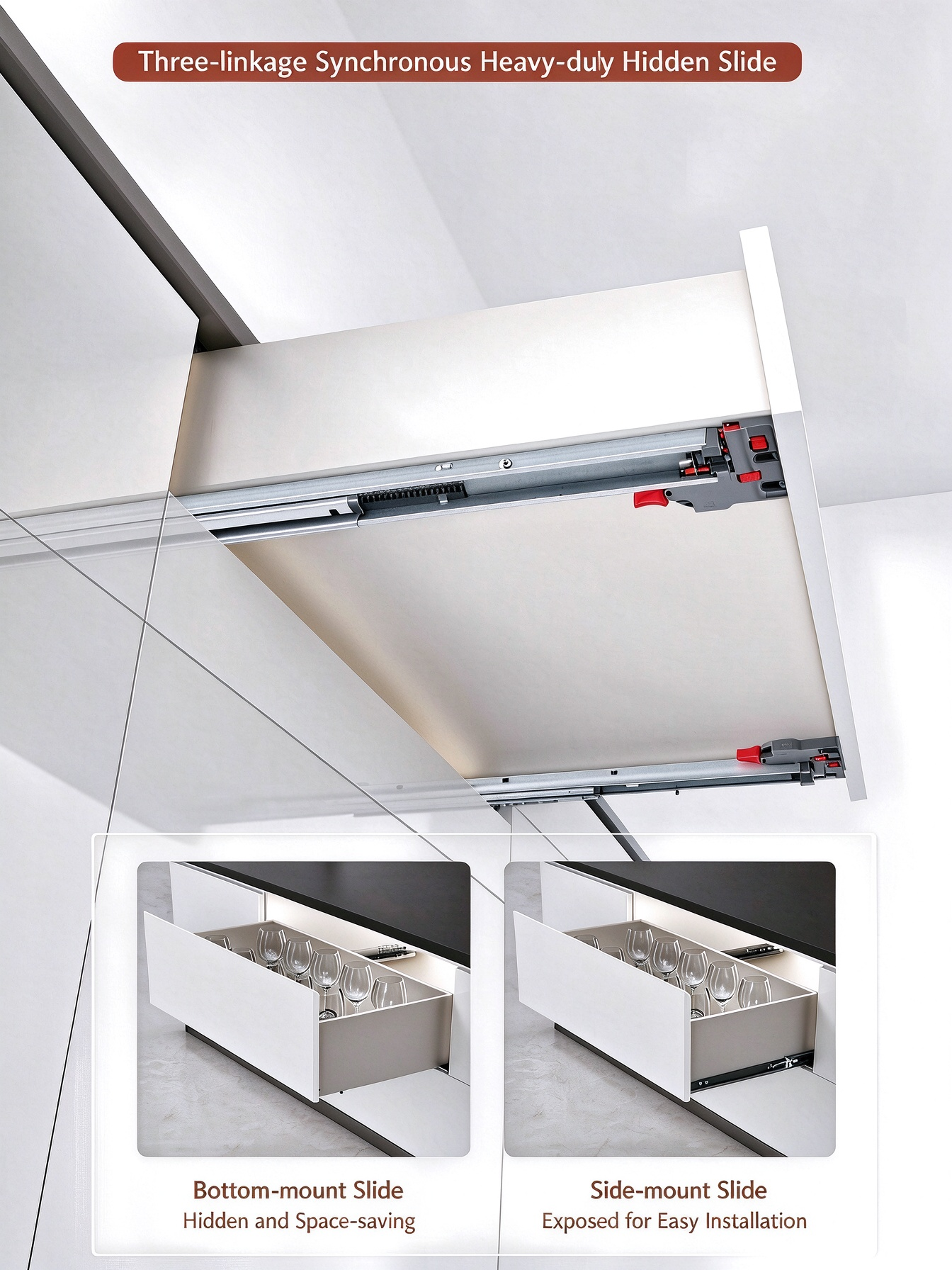

Undermount and side-mount comparison

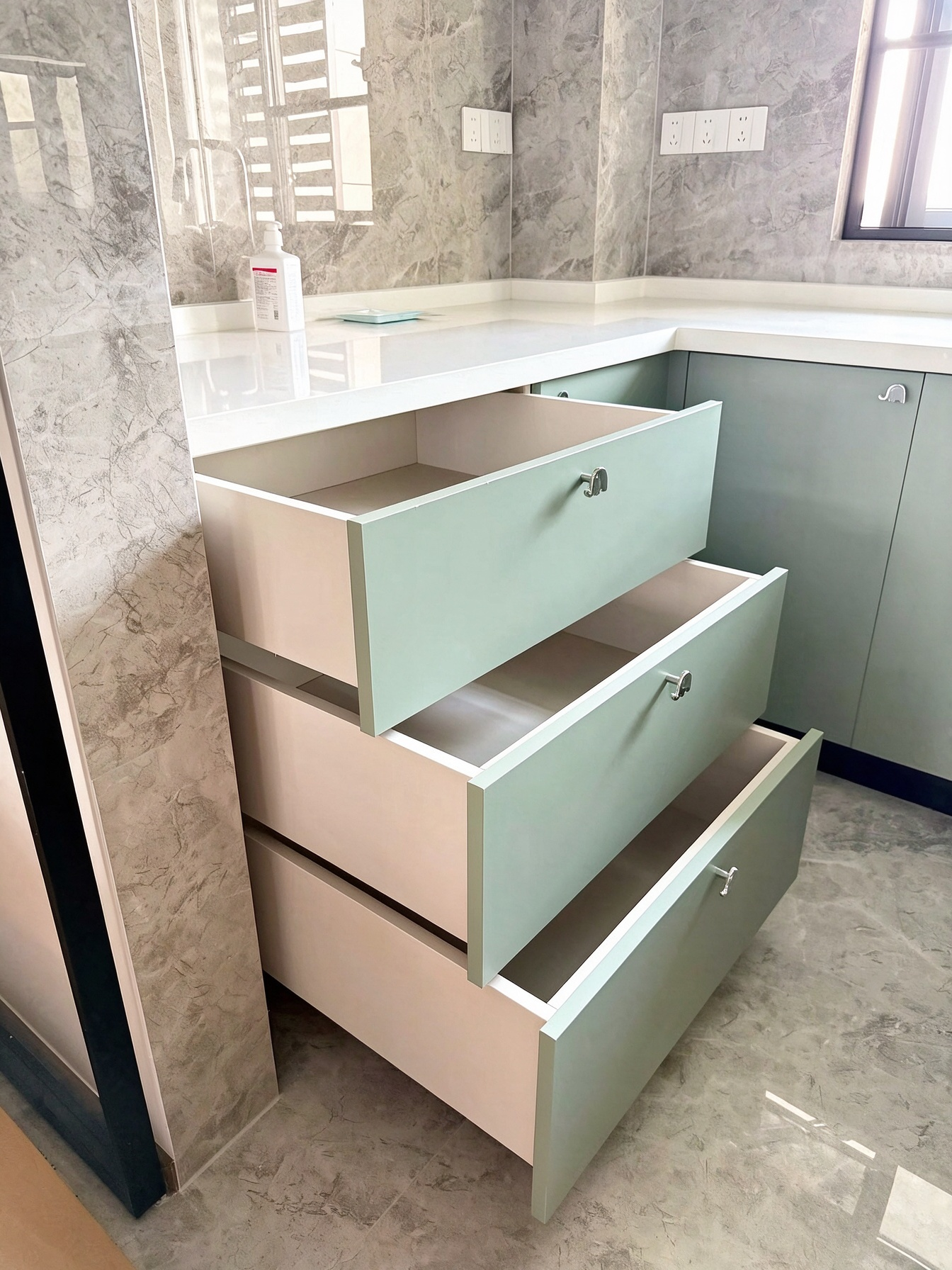

Application
Cabinet setting
Selection guidance
Need a configuration or quotation?
Send us the length, 2D/3D handle option, load requirement and quantity for ZG-DSU1-10.
