35 mm Cup 165° One-way Self-closing Hydraulic Soft Close Concealed Hinge
Fixed / Slide-on · Clip-on
35 mm cup, 165° opening and one-way self-closing spring hydraulic soft close. Slide-on and clip-on mounting with full-overlay, half-overlay and inset options.
Real specs from catalog
Please include the model, required configuration, estimated quantity and destination country in your enquiry.
Cabinet Hinges
Technical specifications
Product specifications are for reference. Confirm the exact configuration when enquiring.
| Opening Type | One-way self-closing spring hydraulic soft close |
|---|---|
| Angle of opening | 165° |
| Depth of hinge cup | 11.5 mm |
| Diameter of hinge cup | 35 mm |
| Dimension of door(k) | 3–7 mm |
| Range for door thickness | 14–24 mm |
| Mounting | Slide-on (fixed) / Clip-on (detachable) |
| Material | Cold Rolled Steel |
| Overlay type | Full-overlay / Half-overlay / Inset |
Configuration

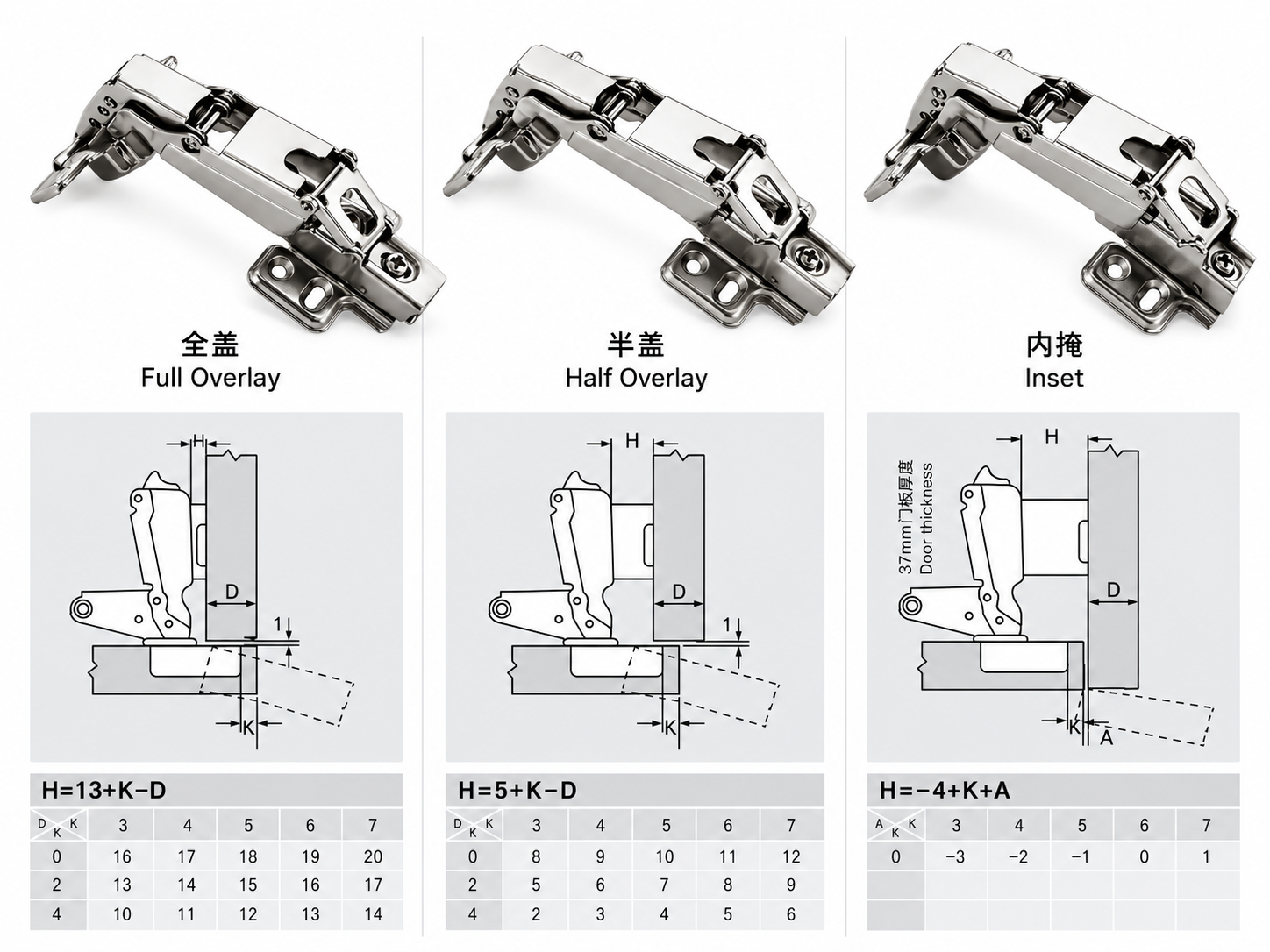

Overlay configurations & model selection
Two base types and three arm types to match your door overlay and installation.
| Fixed / Slide-on | Clip-on |
|---|---|
| ZG-165-F | ZG-165-C-F |
| ZG-165-H | ZG-165-C-H |
| ZG-165-I | ZG-165-C-I |
| Fixed base (slide-on) | Door fixed to the mounting plate by screws; economical, classic installation. |
|---|---|
| Clip-on base | Door snaps on and off the mounting plate for tool-free removal. |
| Full-overlay (直臂) | Door covers the cabinet side fully. |
| Half-overlay (中弯) | Two doors share one cabinet side. |
| Inset (大弯) | Door sits flush inside the cabinet frame. |
Tell us your door overlay and panel type — we will confirm the exact arm and base combination for your selected ZivGrid model.
In use
Installation & applications
For kitchen cabinetry, wardrobes and office furniture; confirm suitability for the selected configuration.
ZivGrid
Product features
- One-way self-closing spring hydraulic soft close
- Cold Rolled Steel
- Fixed and clip-on options
Configuration, finish, packaging and order terms are confirmed with ZivGrid for your specific order.
ZivGrid
Downloads
Technical drawings and test documents will be added when provided and authorized.
Interested in this product?
Please include the model, required configuration, estimated quantity and destination country in your enquiry.
