Special Angle Concealed Cabinet Hinge
35 mm cup diameter and 12 mm cup depth, with six hinge angles. Non-soft-close or hydraulic soft-close functions; screw-on or dowel cup mounting.
Real specs from catalog
Please include the model, required configuration, estimated quantity and destination country in your enquiry.
Cabinet Hinges
Technical specifications
Product specifications are for reference. Confirm the exact configuration when enquiring.
| Cup Diameter | 35 mm |
|---|---|
| Cup Depth | 12 mm |
| Hinge Angle | -45° / -30° / +30° / +45° / 90° / 135° |
| Door Thickness | 14–21 mm |
| Function | Non-soft-close / Hydraulic soft-close |
| Mounting Type | Screw-on cup / Dowel cup |
In use
Installation & applications

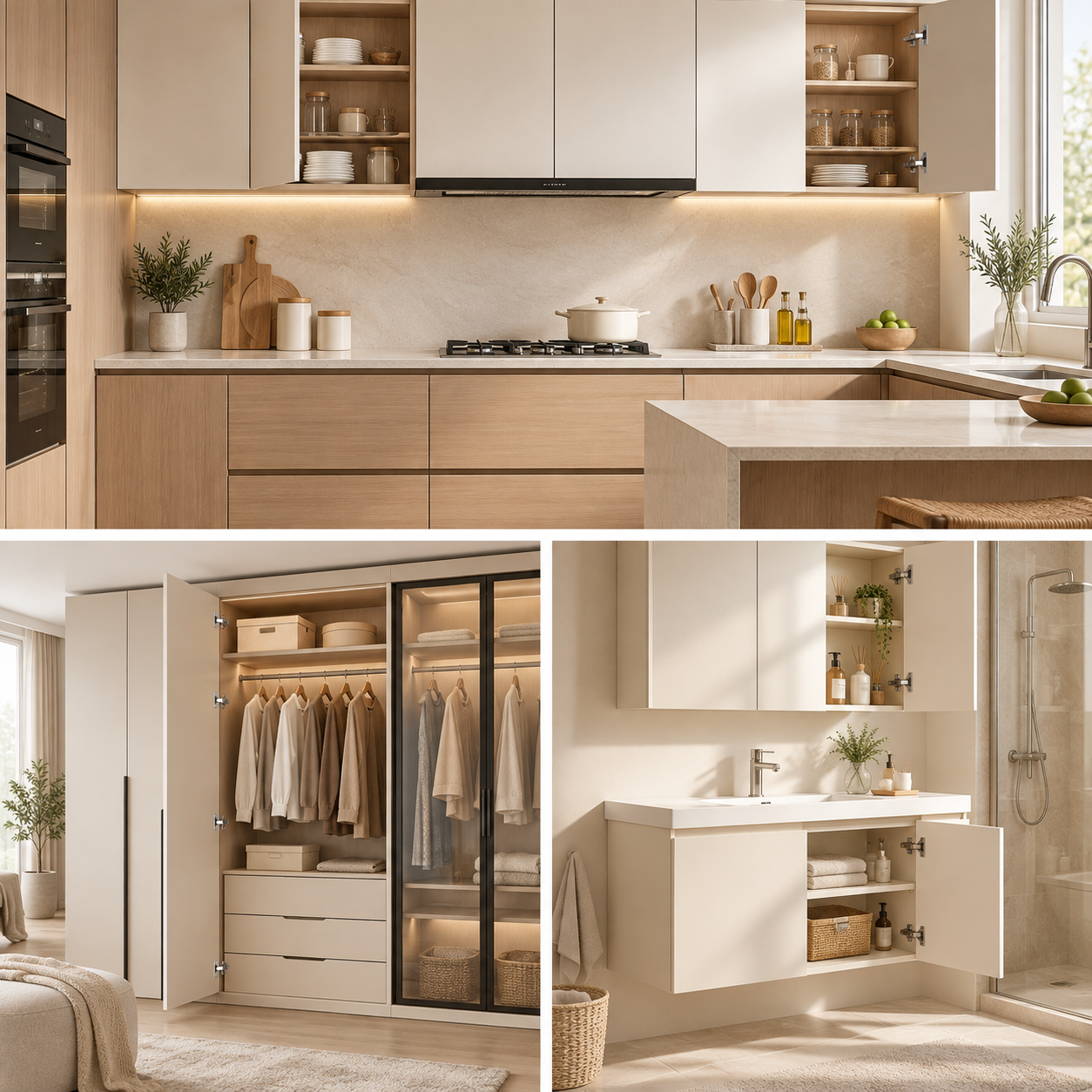

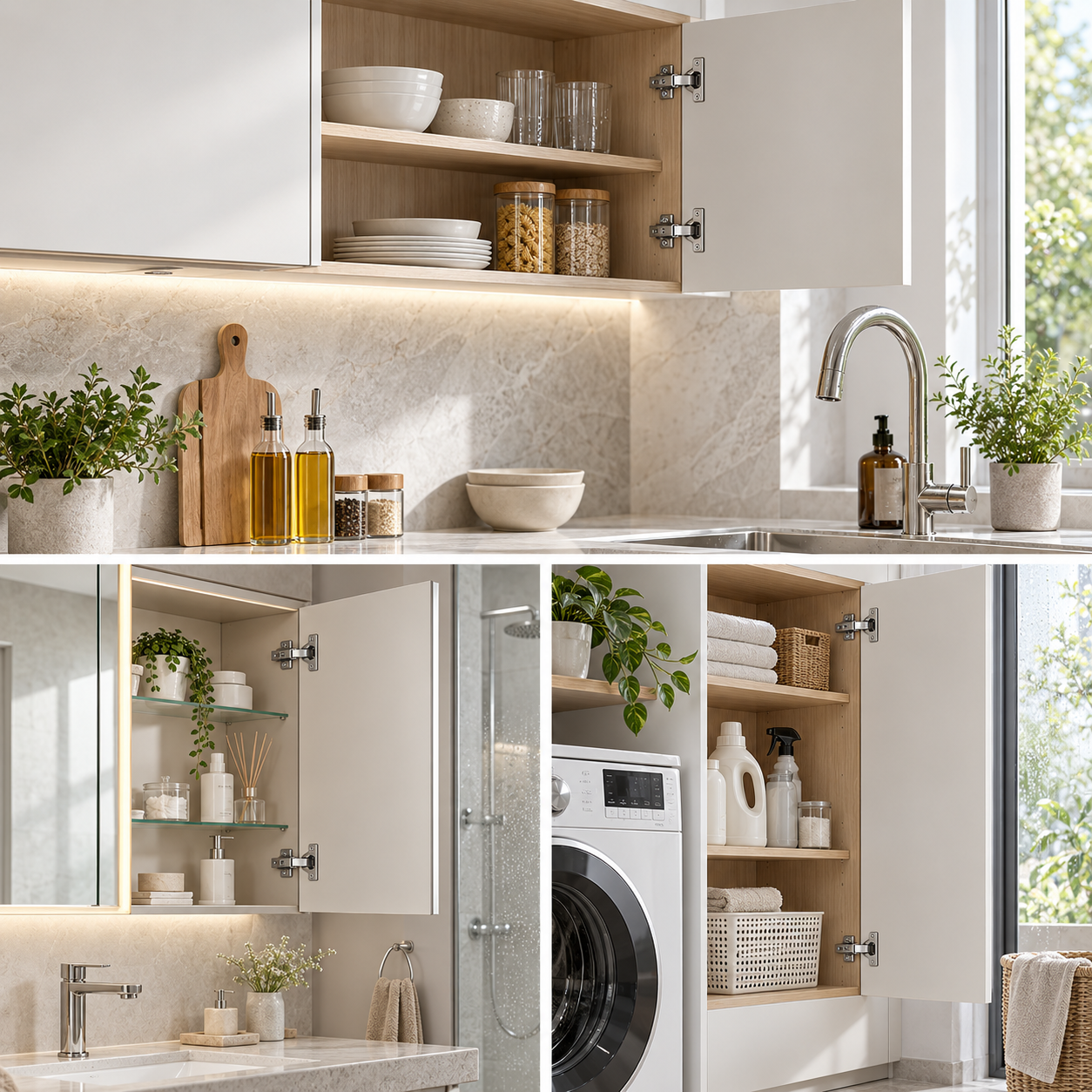

For kitchen cabinetry, wardrobes and office furniture; confirm suitability for the selected configuration.
