Aluminum Frame One-way Self-closing Hydraulic Soft Close Concealed Hinge
Fixed / Slide-on · Clip-on
One-way self-closing spring hydraulic soft close hinge for aluminium frame profiles. Cold rolled steel with a black nickel / gun black finish; slide-on and clip-on mounting.
Real specs from catalog
Please include the model, required configuration, estimated quantity and destination country in your enquiry.
Cabinet Hinges
Technical specifications
Product specifications are for reference. Confirm the exact configuration when enquiring.
| Opening mechanism | One-way self-closing spring hydraulic soft close |
|---|---|
| Opening degree | 110° |
| Suitable profile | Suitable for aluminium frame profile |
| Drilling Hole Diameter | 28 mm on aluminum frame |
| Dimension of door (k) | 3–6 mm |
| Range for door thickness | 12–22 mm |
| Material | Cold Rolled Steel |
| Finish | Black Nickel / Gun black finish |
| Overlay type | Full-overlay / Half-overlay / Inset |
| Mounting | Slide-on (fixed) / Clip-on (detachable) |
Configuration
Clip-on vs fixed & arm options

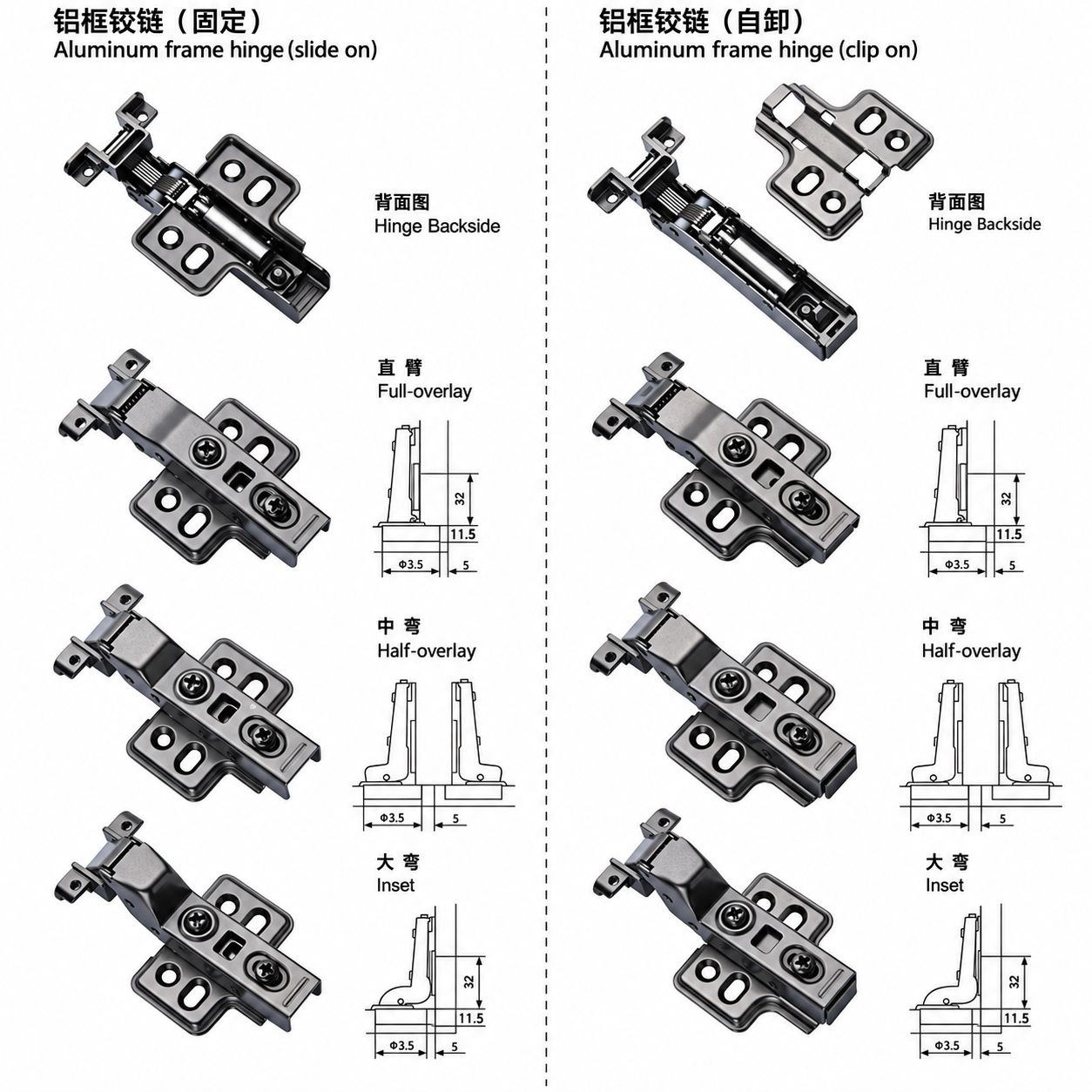

Two base types and three arm types to match your door overlay and installation.
| Fixed / Slide-on | Clip-on |
|---|---|
| ZG-AF-D2-F | ZG-AF-D2-C-F |
| ZG-AF-D2-H | ZG-AF-D2-C-H |
| ZG-AF-D2-I | ZG-AF-D2-C-I |
| Fixed base (slide-on) | Door fixed to the mounting plate by screws; economical, classic installation. |
|---|---|
| Clip-on base | Door snaps on and off the mounting plate for tool-free removal. |
| Full-overlay (直臂) | Door covers the cabinet side fully. |
| Half-overlay (中弯) | Two doors share one cabinet side. |
| Inset (大弯) | Door sits flush inside the cabinet frame. |
Tell us your door overlay and panel type — we will confirm the exact arm and base combination for your selected ZivGrid model.
In use
Installation & applications

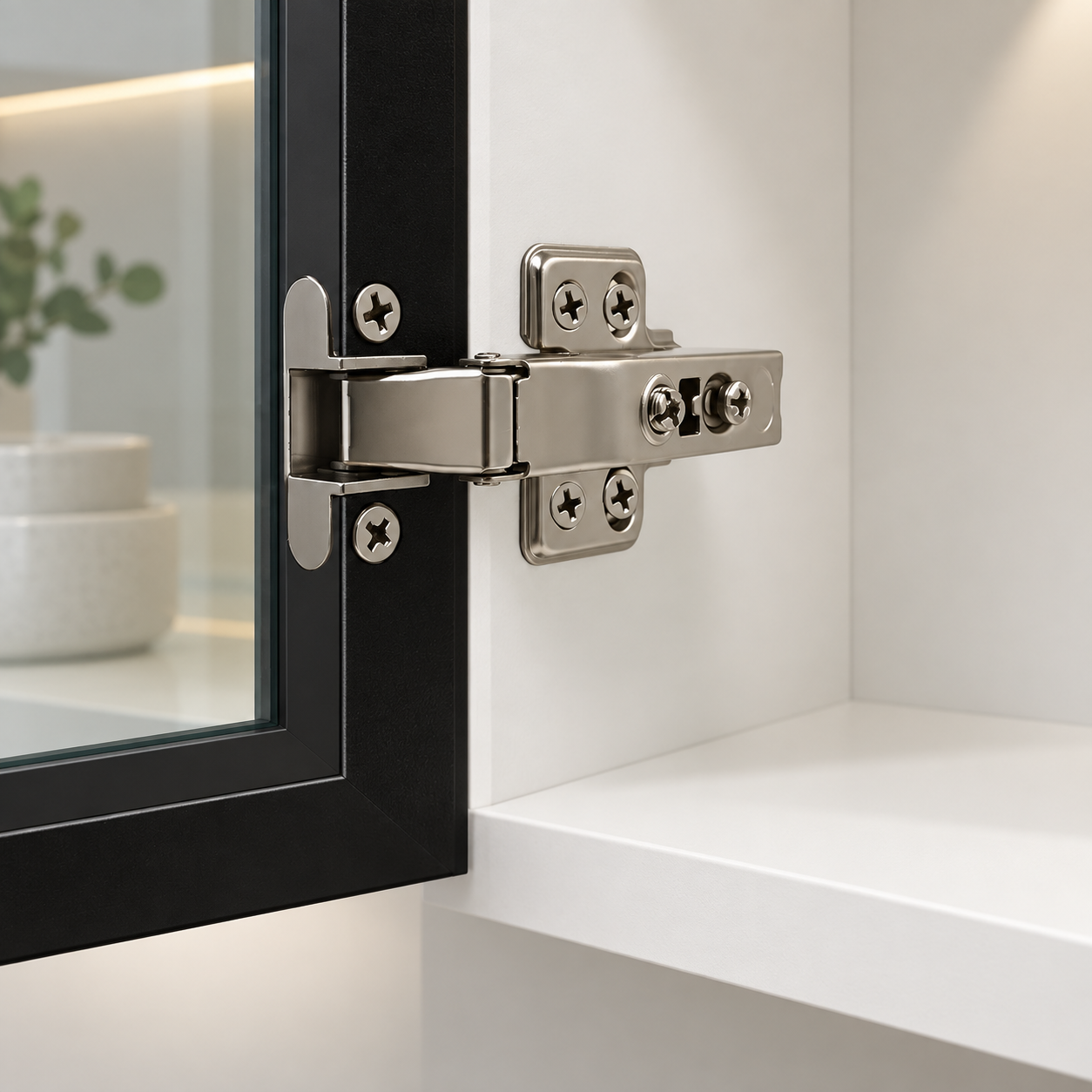

For aluminium-frame glass cabinet doors; confirm profile compatibility for the selected configuration.
ZivGrid
Product features
- One-way self-closing spring hydraulic soft close
- Cold Rolled Steel
- Fixed and clip-on options
Configuration, finish, packaging and order terms are confirmed with ZivGrid for your specific order.
ZivGrid
Downloads
Technical drawings and test documents will be added when provided and authorized.
Interested in this product?
Please include the model, required configuration, estimated quantity and destination country in your enquiry.
