KR-A006 / KR-A006-1
Gas Spring / Cabinet Gas Strut
KR-A006 / KR-A006-1 cabinet gas struts with a plastic butterfly mounting base. One-stage and two-stage force options support lift-up and lift-down cabinet doors.
20–300 N6″–12″80,000 cycles
Two model variants are pictured. Confirm the selected force stage, size, colour and installation direction before ordering.
KR-A006 / KR-A006-1
Specifications
| Models | KR-A006 / KR-A006-1 |
|---|---|
| Force range | 20–300 N |
| Service life | 80,000 cycles |
| Available colours | Gold, champagne, silver, matte black, glossy white |
| Piston rod finish | Chrome plated |
| Tube finish | Chrome plated / painted |
| Main materials | Plastic, iron, steel and copper |
6″–12″
Dimensions by size
| Nominal size | Tube length | Stroke | Centre distance |
|---|---|---|---|
| 6″ | 83 mm | 50 mm | 168 mm |
| 8″ | 88 mm | 55 mm | 178 mm |
| 10″ | 120 mm | 90 mm | 245 mm |
| 12″ | 137 mm | 107 mm | 280 mm |
The 245 mm centre distance and 90 mm stroke belong to the 10″ size. Confirm the selected size and mounting geometry before drilling.
KR-A006 / KR-A006-1

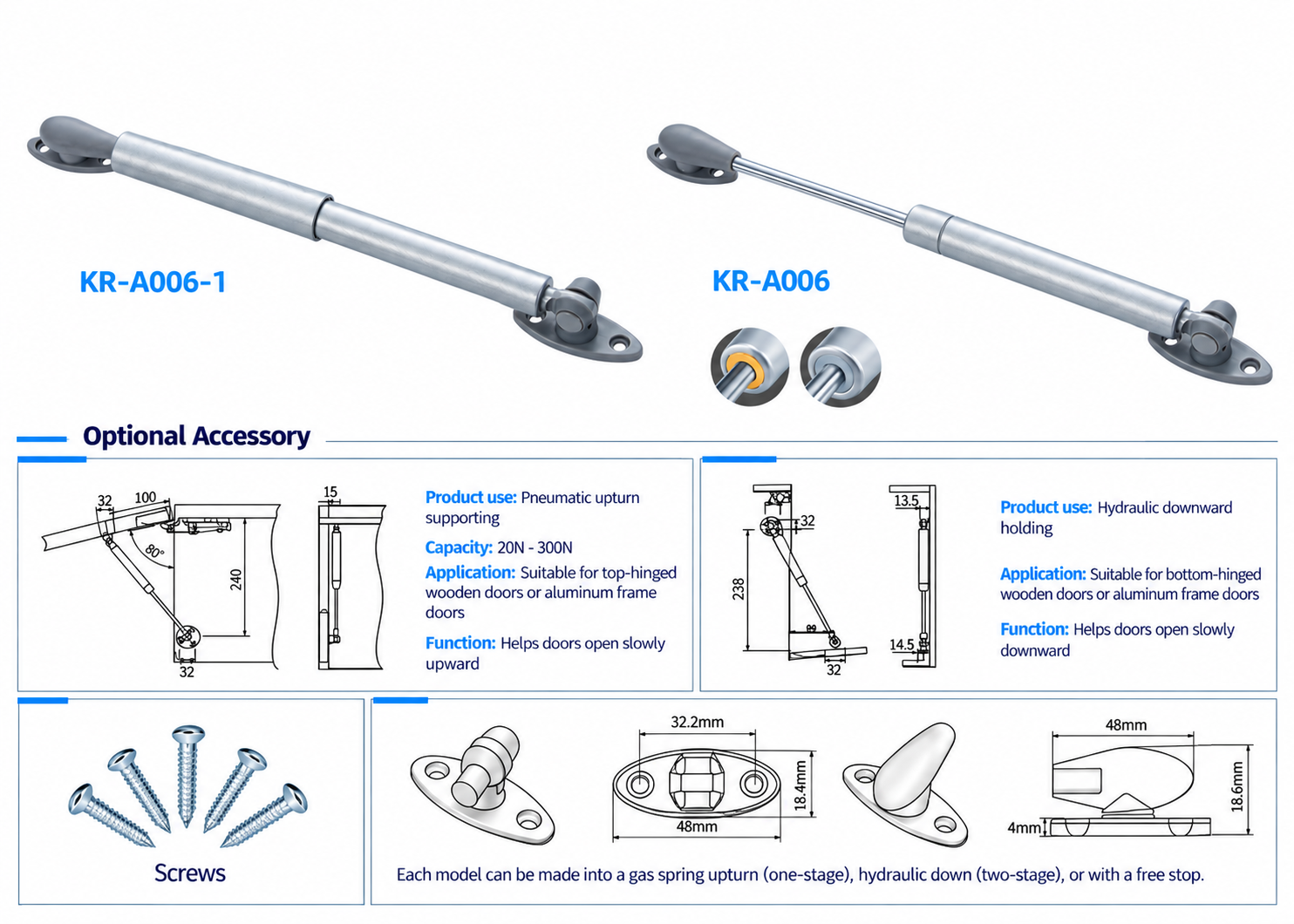

Mounting base and force options
Screw set with a plastic butterfly mounting base. One-stage force and two-stage force variants are available for lift-up and lift-down configurations.
KR-A006 / KR-A006-1

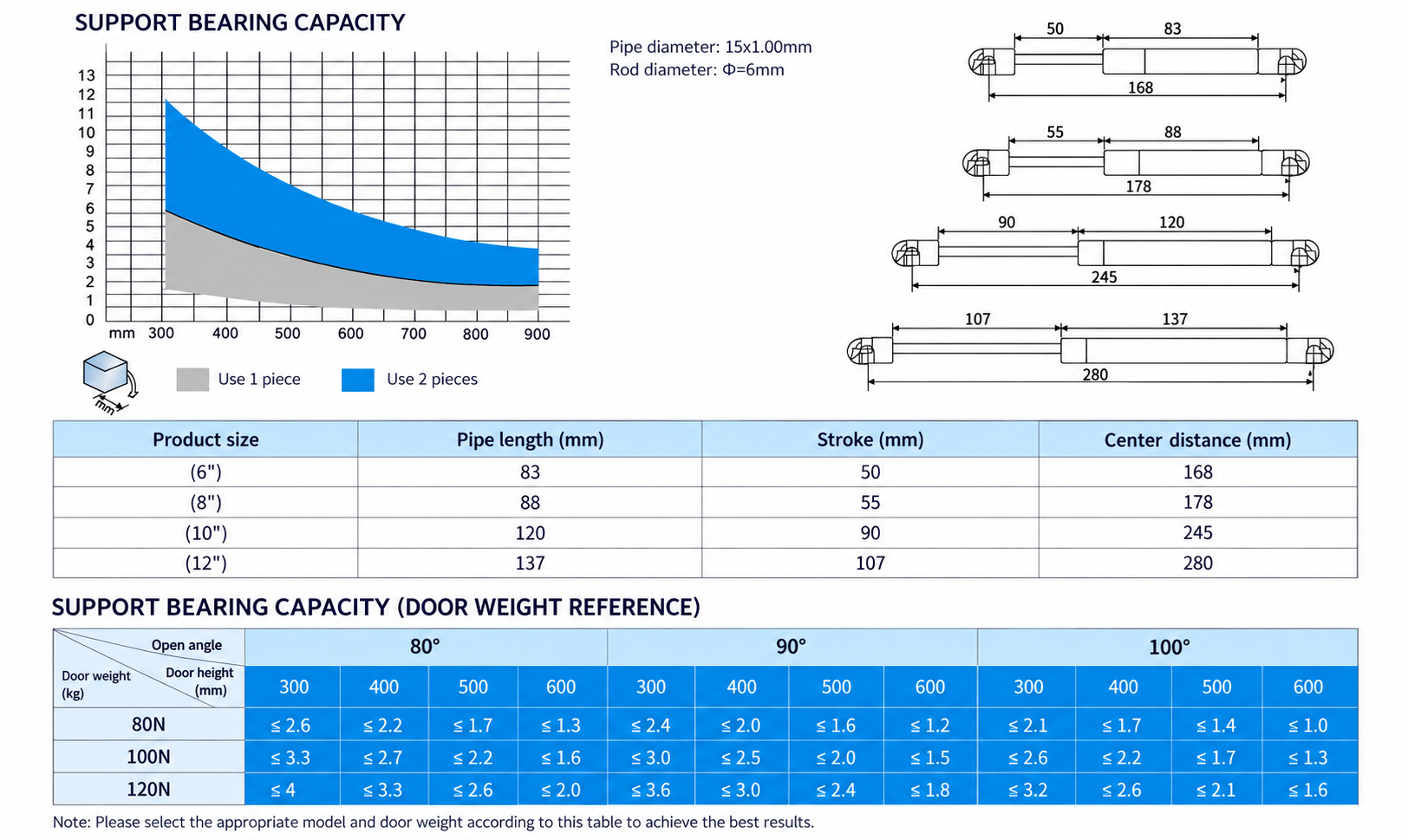

Sizing and load reference
ZivGrid

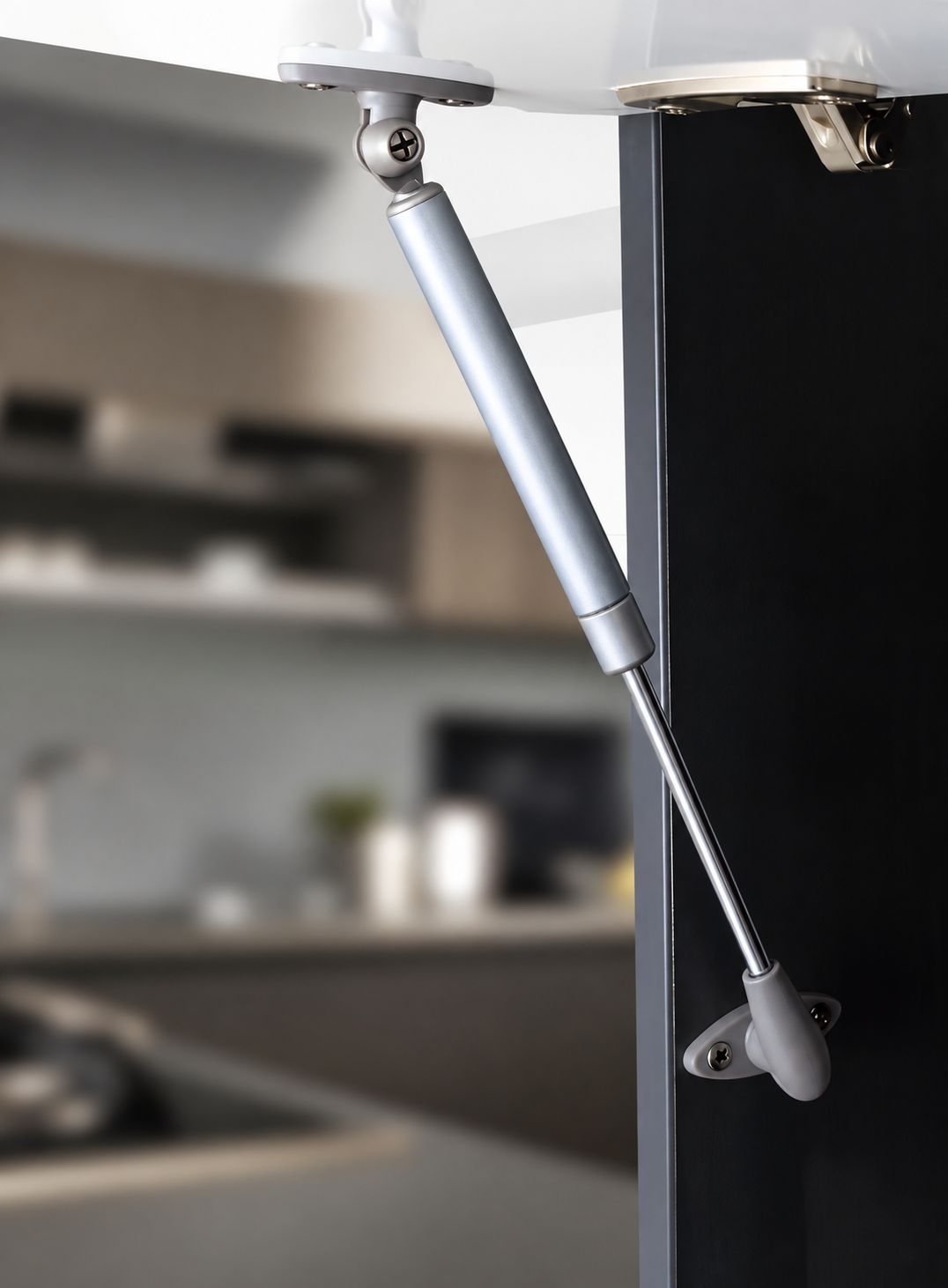

Installation example
Typical applications
Cabinet lift-up doors; the selected variant can also be configured for lift-down doors.
